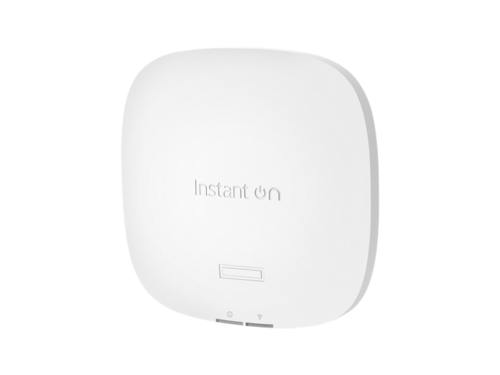

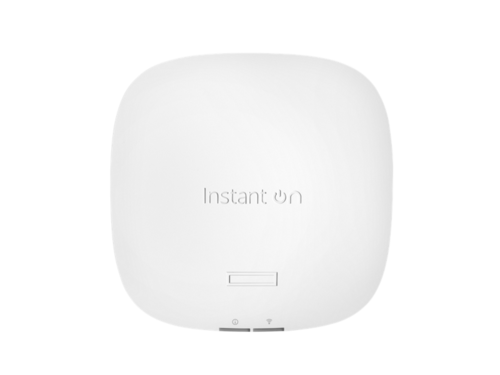

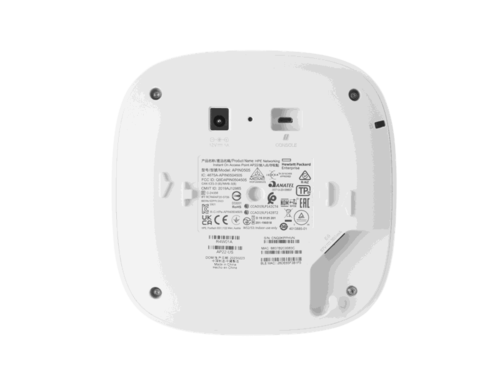

HPE Networking Instant On Indoor Access Point 2x2 Wi‑Fi 6 (IL) AP22
Wi-Fi antennaAntennas: Down-tilt Dual Omni-directional 2x2 MIMO
Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz
Maximum transmit power:
5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Ports1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
CertificationsWi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Connectivity, standardUltra-fast 802.11ax
Input voltagePower over Ethernet (PoE): 802.3af (class 3) DC power (12V)
Note: Power sources are sold separately unless you purchase the bundle SKU
Power consumptionMax power consumption: 10.1W (PoE), 8.8W (DC)
MountingCeiling/Wall-mount clip
Radio coverageDual-radio 802.11ax
2x2 5 GHz/2.4 GHz MIMO
Weight500 g (1.1 lb)
Dimensions37x 160 x 160 mm (1.5 x 6.3 x 6.3 in)
DifferentiatorIn the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable
